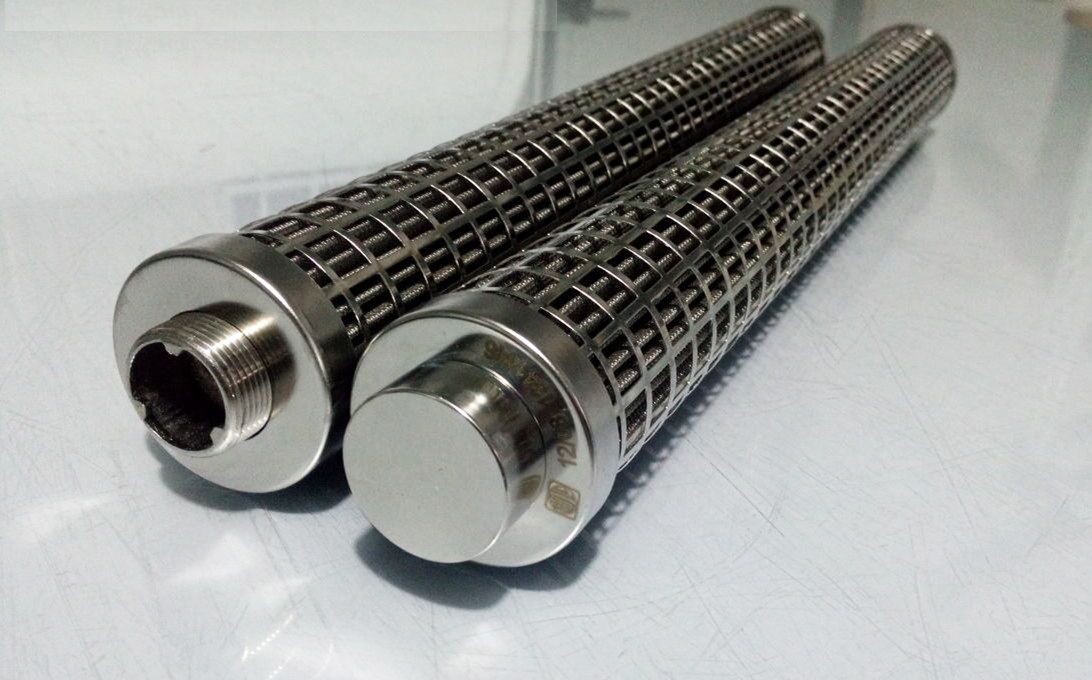

Product Overview
- Sintered Stainless Steel 316L Non woven fiber media is manufactured from bundle drawn SS 316L Fibers.
- Fibers are cut to specific length & compressed at high pressure followed by high temperature sintering in Furnace is bringing excellent porosity and strength at very high operating & differential pressure.
- The Sintered Non-Woven fiber Media has a maximum porosity of 80%, thickness of 0.6 mm to 1.0 mm and can be converted to cylindrical or pleated shape filter cartridges of required dimensions with required filtration area.
Features & Benefits
- Low pressure drops, excellent cleanability and dirt holding capacity offers long service life.
- End caps and connectors are weldable by Pulse tig –or- Micro-plasma welding.
- Manufacture in clean room areas.
- Cleaned with ultrasonication before final inspection &packing
- Pleated filter is multi layered structure, Nominal rated filtration efficiency filter media
- Allowable Temperature : 2500C, Fe Cr Alloy can handle 600 Deg C
- Max Op. Pressure : 200 kg/cm2
Application
- Compressed Air, Hot Gas, Nitrogen filtration
- Process fluids, Chemicals, Solvents, Fine chemicals, Monomer, polymer filtration
- Vent Filter, Agro Chemical, Pharmaceutical Powder Recovery
- Fluidization, Air Quenching, Air Sparging
Product Specifications
| No. | Specifications | Description |
|---|---|---|
| 1 | Filter media | Stainless Steel 316L |
| 2 | Upstream and downstream filter support | 40 mesh SS 316L wire-mesh |
| 3 | Core | Perforation / With or Without Spring |
| 4 | End cap | SS 304 / SS 316L |
| 5 | Gasket/O-ring | Silicone/ PTFE / Viton / FEP Encapsulated Silicon |
| 6 | Type of caps | DOUBLE OPEN END, CODE VII, CODE II, BSP / NPT threaded |
| 7 | Filtration rating | 1,3, 5,10, 20um |
| 8 | Outer diameter | Standard 64 mm & other diameters are available on request |
| 9 | Length | Standard 5”, 10”, 20”, 30”, 40” & other lengths are available on request |
